P12mm outdoor led display

P12mm outdoor led display
P12mm outdoor led displayP12mm outdoor led displayP12mm outdoor led displayP12mm outdoor led display
CategoriesOutdoor Fulll Color LED Display
AlbumView larger image
BrandPORSTARLED
ModelOA-P12MM
Pixel Density6944pixels/square meter
Waterproof LevelIP65/IP54
High Brightness>7500CD/sqm
Lifespan100,000hours
Refresh Rate>2000HZ
LED Module Size192mm x 192mm
LED Cabinet MaterialIron Steel or Aluminum
ISO,FCC,SGS,LVD Warranty3years Warranty
FOB portFOBSHENZHEN
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2019-04-19
Detail Information

Introduction:

PH12mm Outdoor full color LED display adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. It can be assembled, disassembled and repaired very easy. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, stage performances and so on.



Features & Technical Specification:
1. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, stage performances and so on.
2. High Contrast and Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image of our LED screen system.
3. Good quality LED chip: Supplied by Nichia, Cotco cree,Toyota,Silan.Optec,& other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Very high quality and Clear vivid image quality: even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. High Brightness of LED Display: 7500-nit brightness (for outdoor full color)(more than 2000 nits brightness for indoor full color) capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear led display cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

Technical Specification:

Pixel configuration

DIP346 1R1G1B

LEDs configuration

Red: wave length: 625~630nm;1100-1300mcd
Green: wave length: 525~530nm;1900-2400mcd
Blue: wave length: 470~475nm;500-700mcd

Pixel pitch(mm)

12

Pixel density

6944

Calibrated brightness

8500 nits(adjustable)

Calibrated brightness proportion ratio

R: G: B = 30%:60%:10%

Color temperature

3,500°---9,500° K(adjustable)

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle

Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)

Color capability

4.4 trillion

Refresh rate(Hz)

>2000 Hz

Frame frequency(Hz)

>60 Hz

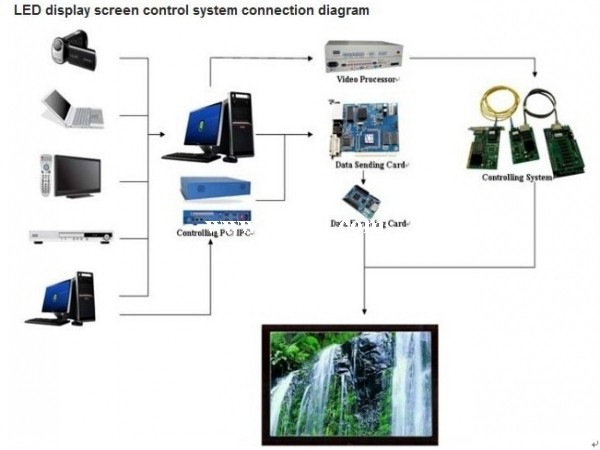

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP54 backside

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30-65'

Storage temperature(Celsius degree)

-35-70'

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power

120/240 V  AC single phase(50-60Hz)

Maximum power consumption(W/SQM)

650

Average power consumption(W/SQM)

260

Screen operation mode(scan/static)

 1/4

Module configuration(Pixels quantities of the module)

Length

16

Height

16

Module dimensions(mm)

Length

192

Height

192

Cabinet dimensions(mm)

Length

960

Height

960

Width

170
