high quality indoor led screen P4mm

high quality indoor led screen P4mm
high quality indoor led screen P4mmhigh quality indoor led screen P4mmhigh quality indoor led screen P4mmhigh quality indoor led screen P4mmhigh quality indoor led screen P4mm
CategoriesIndoor Full Color LED Display
AlbumView larger image
BrandPORSTARLED
ModelIA-P4MM
Wateproof LevelIP43
Refresh Rate>1000HZ
Life span100,000hours
Cabinet Size500mm x 500mm
LED Module Size250mm x 250mm
Warranty3years warranty
Cabinet typeDie Casting rental
Brightness>2000CD/Square meter
Pixel Density62500 pixels/square meter
CertificationCE,ROHS,ISO,FCC,SGS,LVD
FOB portFOB SHENZHEN
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2019-06-19
Detail Information

Technical Specification (P4mm Indoor full color led display):

Pixel configuration

SMD2020 1R1G1B 3 in 1

LEDs configuration

Red: wave length: 625~630nm;300-400mcd
Green: wave length: 525~530nm;600-800mcd

Blue: wave length: 470~475nm;100-150mcd

Pixel pitch(mm)

4

Pixel density

62500

Calibrated brightness(cd/sqm,nit)

2500 nits(adjustable)

Calibrated brightness proportion ratio

R: G: B = 30%:60%:10%

Color temperature

3,500° -9,500° K(adjustable)

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 160° (80° off center); Vertical: 160° (80° off center)

Readability viewing angle

Horizontal/ Vertical: 170° (85° off center)

Color capability

4.4 trillion

Refresh rate(Hz)

>800 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP54 backside

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30-65'

Storage temperature(Celsius degree)

-35-70'

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power

120/240 V  AC single phase(50-60Hz)

Maximum power consumption(W/SQM)

900

Average power consumption(W/SQM)

360

Screen operation mode(scan/static)

  1/16

Module configuration

Length

32

Height

32

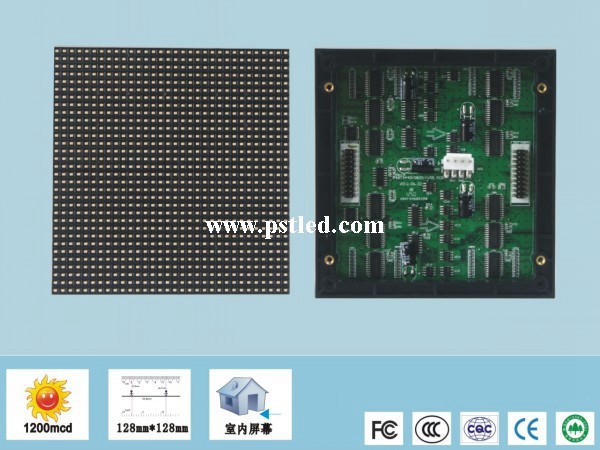

Module dimensions(mm)

Length

128

Height

128

Cabinet configuration

Length

4

Height

4

Cabinet dimensions(mm)

Length

512

Height

512

Width

170

Screen configuration

Length

4

Height

3

Screen dimensions(m)

Length

2.0480

Height

1.5360

Screen Size

SQM

3.1457

Recommend Optimal Viewing Distance: Minimum & Maximum

Min

2

Max

54

Resolution ratio(dots/pixels)

Length

512

Height

384

Aspect Ratio(L:H)

1.33333

Packaging configuration

2 standard cabinets in  a packing case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM)

Packing material

Wooden case/carton/flight case(optional)

Packing quantities

6

Packing volume(CBM)

1

Packing  Dimensions(mm)

Length

617

Height

717

Width

520

Packing weight(KG)

net

118

gross

159

Introduction:

P4mm Indoor full color led display adopts SMD (Surface Mounted Device) or dot matrix technology. Indoor full color display is clearer than outdoor in terms of picture quality. The brightness of indoor panel is about 2000 nits. It has no need for indoor panel to use waterproof cabinets. Indoor panel includes wall mounted screen, single and tri-color screen. Full color indoor panel can be used to play video as advertising. Single and tri-color panel is usually used to show important information or notice, even weather forecast. Wall mounted indoor screen always adopts front maintenance method because it is impossible to open the cabinet from the back.

Indoor screen can usually be seen in all kinds of stations as message board, on the stage as background wall and in football or basketball field as score sign or side screen.
The best viewing distance of indoor panel is usually small in order to guarantee a clear look at the screen. So you can see the picture of indoor display clearly in a near distance. The size of indoor screen is not large because its viewing distance is nearer than outdoor screen.

Features:

P4mm Indoor full color led display

1.Easy to maintain, High resolution, Good contract, Less Weight, easy to install. Widely used as the information billboard in Airport, Railway station, and big shopping mall, concert and ect.
2.The brightness of indoor LED signs is adjustable so as to ensure different environment.
3.Indoor SMD LED signs include PH4mm, PH5mm, PH6mm, PH7.62mm, PH10mm and PH12mm.P6mm and P7.62mm are most popular pixel pitch.
4.We make best design with high cost- efficiency according to the actual needs of our customers and we can offer OEM service as well.
5.We produce advertising LED display, rental LED display, traffic LED display, highway LED display, stadium LED display, curve shape LED display, text information LED display and so on.
